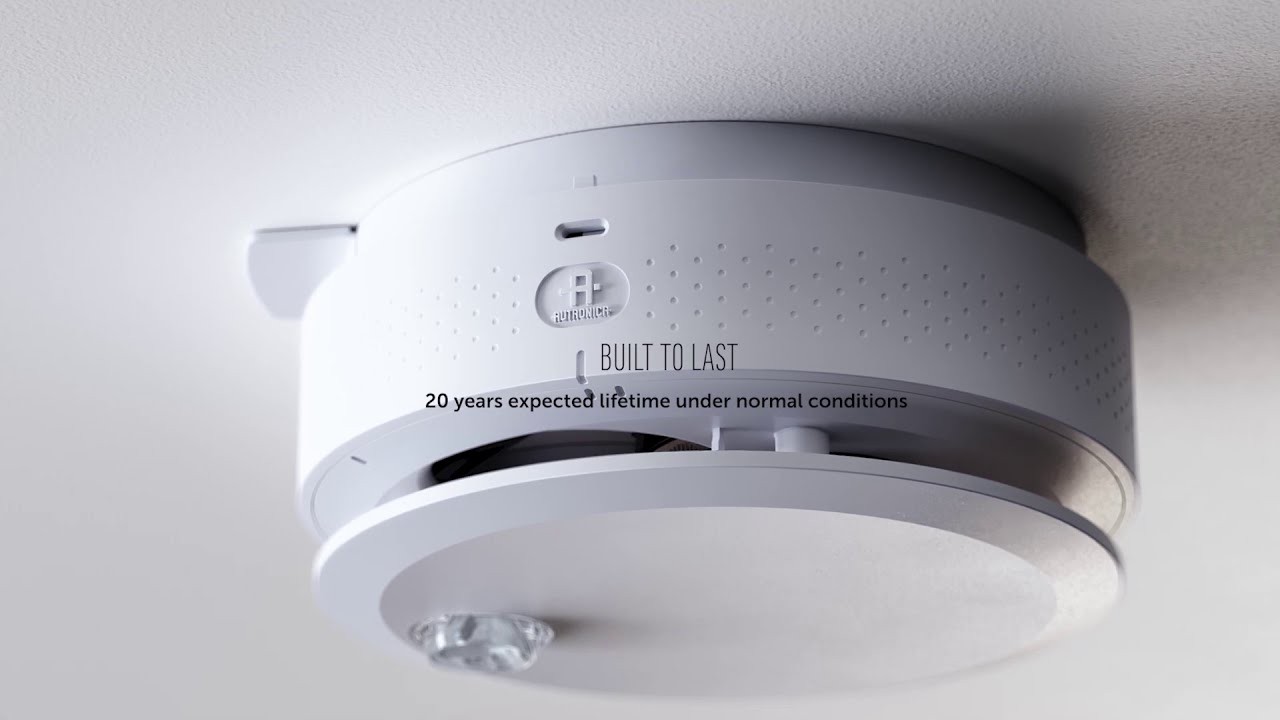

AutroGuard® multicriteria protector provides a new generation technology that simplifies installation and commissioning and increases fire safety. It is more than a detector, it is a PROTECTOR. It detects fire and gives a warning – all in the same device.

Extreme sensor dynamics provide reliable detection that has greatly reduced detection time and nuisance alarms and expanded the use to cover even more application areas. The type of operation is configurable to Heat, Optical, or Multisensor, covering several applications.

It has a wide range of fire safety features included in one single device, providing a significant reduction of wiring and installation costs – and a cleaner look.
The SelfVerify technology ensures that the protector is as reliable as when it left the factory for its entire life cycle.

DYFI^3D technology

AutroGuard® utilizes DYFI^3D technology; MultiAngle/MultiWavelength detection with advanced algorithms analyze the unique signatures for each type of fire and nuisance source in a 3D space, enabling the protector to accurately distinguish between real fires and nuisance alarm sources.

SelfVerify®

The SelfVerify® system function provides a calibrated and automatic self-test every 24 hours (an add-on feature for V-430 and a standard feature for V-530 variants). It tests the signal path to the system panel, alarm devices, and output units. In this way, the self-test ensures that the protector can initiate an alarm when it should, and at the correct sensitivity level according to the fire standards EN 54 parts 5 and 7 throughout its lifetime.

Additionally, an advanced Pulse Response Signal analysis is run every other second, verifying 100 % of the components in the signal path and 99 % of the components in the protector.

Cover Detection

AutroGuard® provides Cover Detection (an add-on feature for V-430 and a standard feature for V-530 variants). We use infrared light to detect if the protector is covered by a dust cap or any other object, and a fault message will appear. The feature can be turned off during maintenance.

Integrated sounder

AutroGuard® can be delivered with an integrated EN 54-3 approved sounder (optional). Sound patterns and sound levels are configurable, with a maximum sound output of 93 dBA at the 1 m range. Protector variants with integrated sounders are not certified according to UL-268, UL-464, and ULC-525.

Integrated Visual Alarm Device (VAD)

AutroGuard® can be delivered with an EN 54-23 compliant integrated Visual Alarm Device (VAD) (optional). It is available in white or red color and is configurable to 4 different intensities. The flash rate is also configurable (1 or 2 sec.). Protector variants with integrated VADs are not certified according to UL-1638 and ULC-526.
