Input module BSE-320

input module, monitored bse 310 (duplicate)

Input module with 8 non-monitored and galvanically isolated inputs for digital input devices and other controlling inputs.

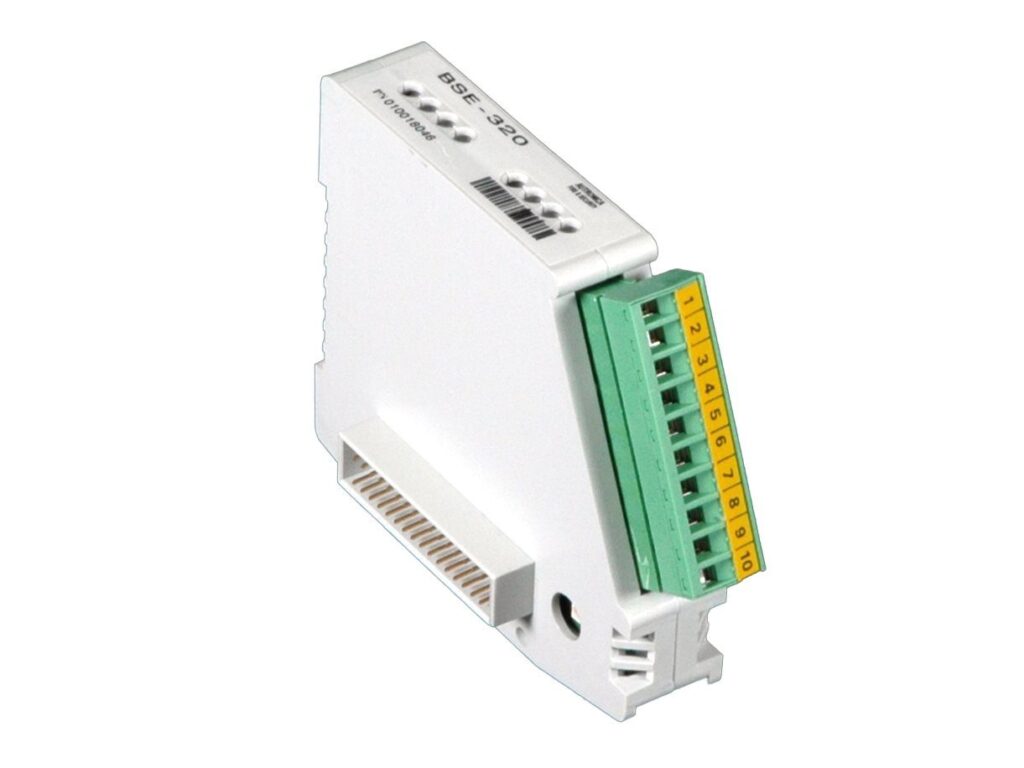

The input module BSE-320 provides 8 non-monitored and galvanically insulated inputs for digital input devices and other controlling inputs. The module is easily plugged onto a mounting rail inside the fire alarm control panel BS-420 or the controller BC-420.

The inputs have a common connection to an external source, 24V DC. Each input is activated by pulling the terminal to 0V, typically by an open-collector output. The module will automatically detect its address; no Dip-switch or jumper settings are required. The module is intended to be mounted in a closed cabinet. Ambient light should be avoided.

Part number: 116-BSE-320
