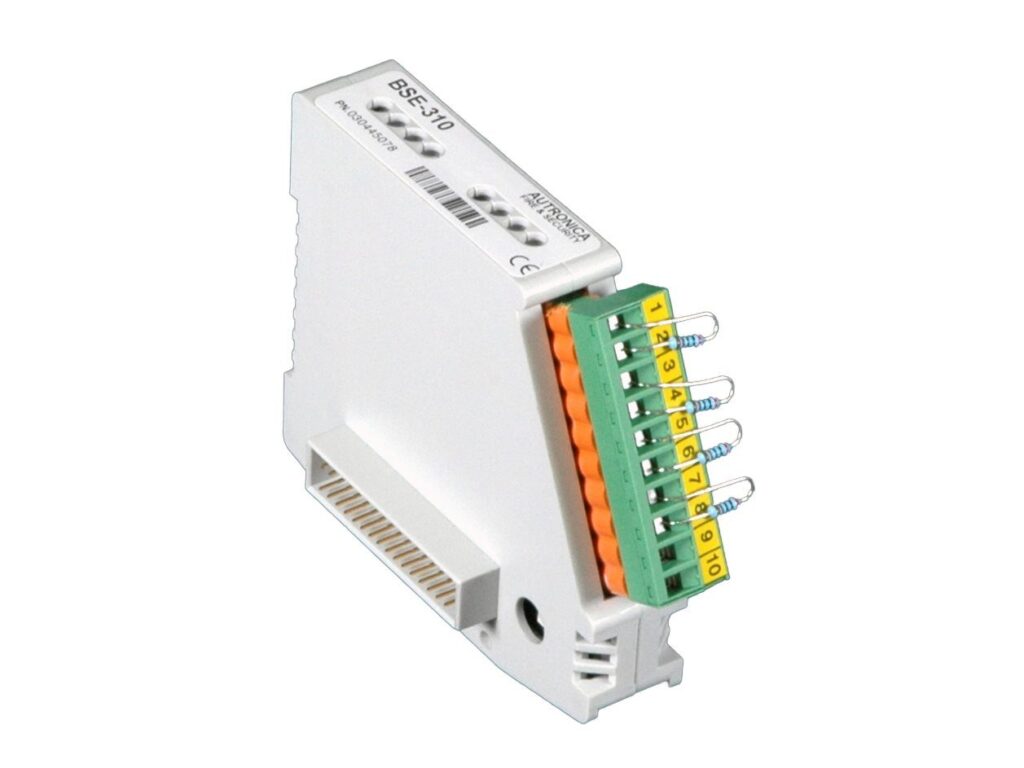

Input module, monitored BSE-310

bs 100 loop interface bsd 330 (duplicate)

Input module with 4 monitored inputs for digital input devices and other controlling inputs.

The input module BSE-310 provides four monitored inputs for digital input devices and other controlling inputs. The module is easily plugged onto a mounting rail inside the fire alarm control panel BS-420 or the controller BC-420.

Each input circuit is connected to a closed loop with a known resistance. A change in the resistance is detected by the module. The module will automatically detect its address; no Dip-switch or jumper settings are required.

Part number: 116-BSE-310
