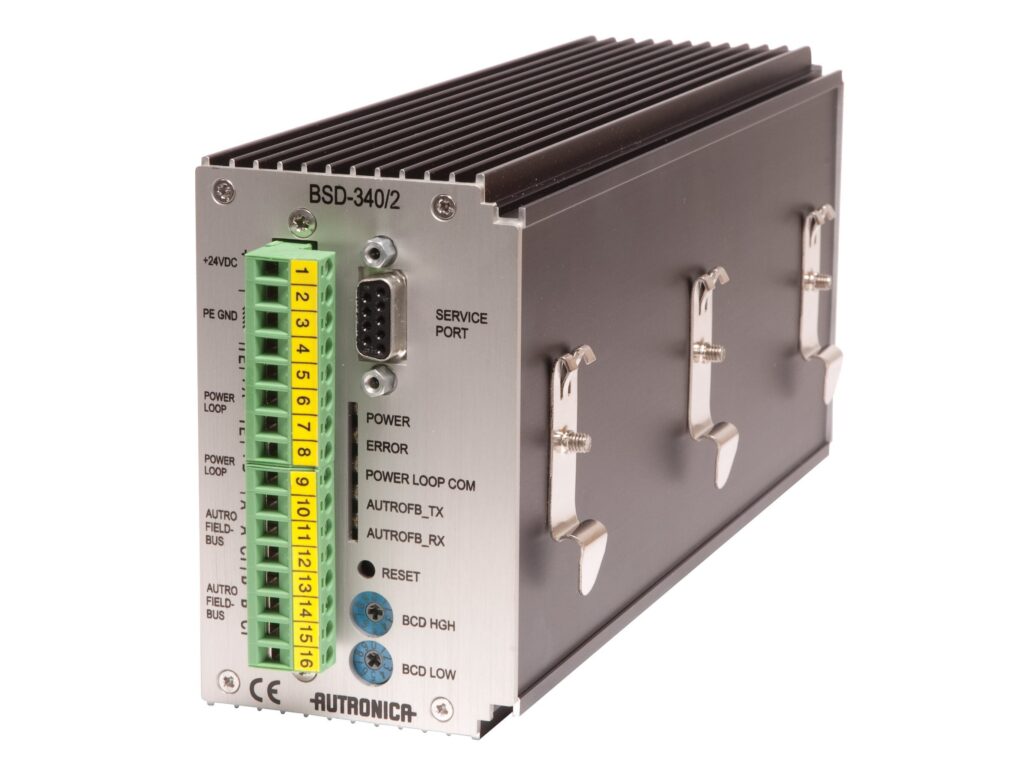

A protocol converter between AutroFieldBus and PowerLoop. It consists of PowerLoop interface for power and communication, and AutroFieldBus interface towards AutroFieldBus driver (EAU-340). DIN-rail mounted

the unit consists of a PowerLoop interface for power and communication, and an AutroFieldBus interface towards an AutroFieldBus driver (EAU-340).

The PowerLoop is a two-wire bus capable of delivering 30V DC/100W connected in ring topology and is galvanically isolated from the rest of the system, and interfaces with detectors and other loop units, including a 4- 20mA interface.

The BSD-340/2 provides a service port female DSub 9-pin, which is used for commissioning and maintenance. The AutroFieldBus address is set by switches. The AutroFieldBus is normally a category 5 copper cable.

Part number: 116-BSD-340/2
