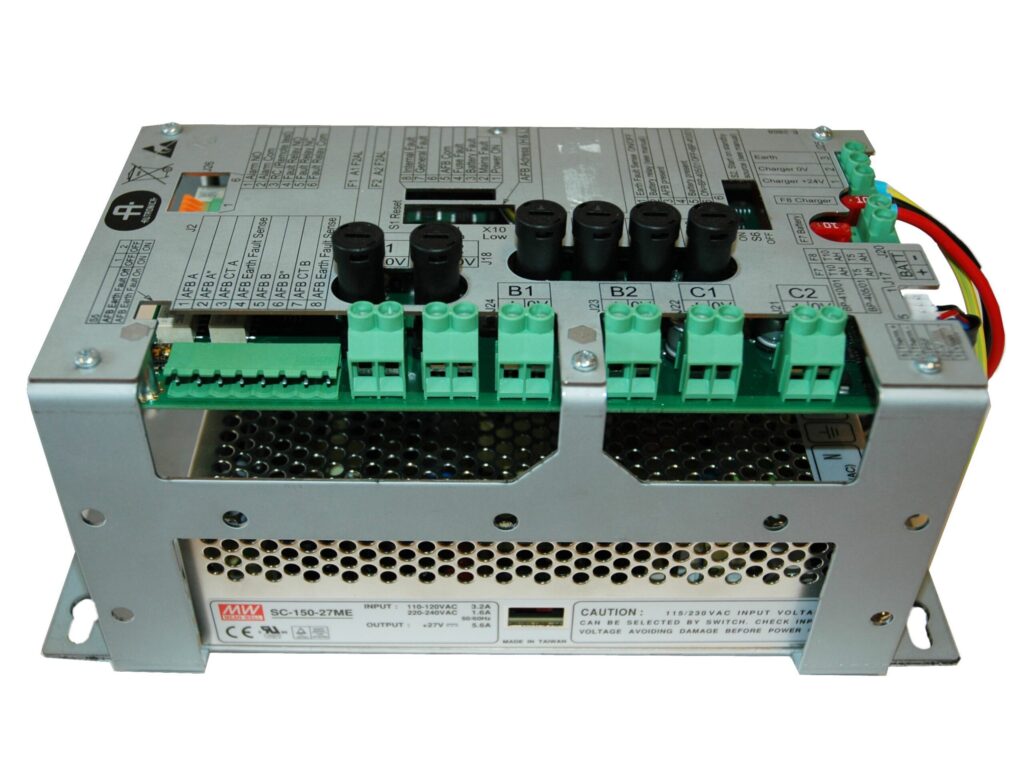

Power supply unit BPS-405, 24 V / 5 A (Obsolete. Contact us in order to discuss possible solutions)

converter/ transformer 110 130 vac / 220 vac (duplicate)

For AutroSafe / AutroSafe IFG

The power supply unit is prepared for decentralized power distribution via the AutroFieldBus to panels/units in the AutroSafe Interactive Fire Detection System, release 4 or later.

  • 24 V/5 A power supply

Power board BSF-400, including:

  • AutroFieldBus interface
  • 115 VAC /230 VAC input
  • 6 outputs 24 VDC (max. 2A each)
  • 1 fault relay output

Part number: 116-BPS-405/BOXED
