AutroSafe modules

Standard modules that can be fitted into the AutroSafe and AutroSafe IFG fire alarm control panels and controllers.

The modules have the same format, mount onto the panels’ DIN mounting rail, and plug into one another.

Important note on module capacity:
Each fire alarm control panel/controller contains a power supply module BSS-310A and a communication module BSL-310.

The BS-420 and BC-420 panels have space for up to 12 modules, totally inside the cabinet.

An Al_Com+ stack can contain up to six loop driver modules (BSD-3xx)

By using AutroFieldBus, an additional Al_Com+ stack (with up to six additional loop driver modules) can be added to the system.

NOTE! The AutroSafe panels are certified with the Al_Com+ modules mounted inside the panel cabinet.

Products

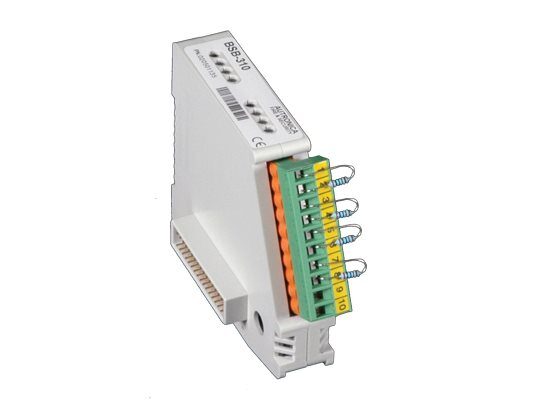

Output module, monitored BSB-310A

Provides four output circuits monitored for break and short-circuiting

Loop driver module BSD-310

Loop driver module with capacity for one detector loop with a maximum of 127 loop units (detectors/I/O modules/sounders).

Loop driver module with capacity for one detector loop with a maximum of 127 loop units (detectors/I/O modules/sounders). Maximum 99 detectors/call points. Maximum number of loop driver modules per control panel/controller is 6. For Ex zone 2.

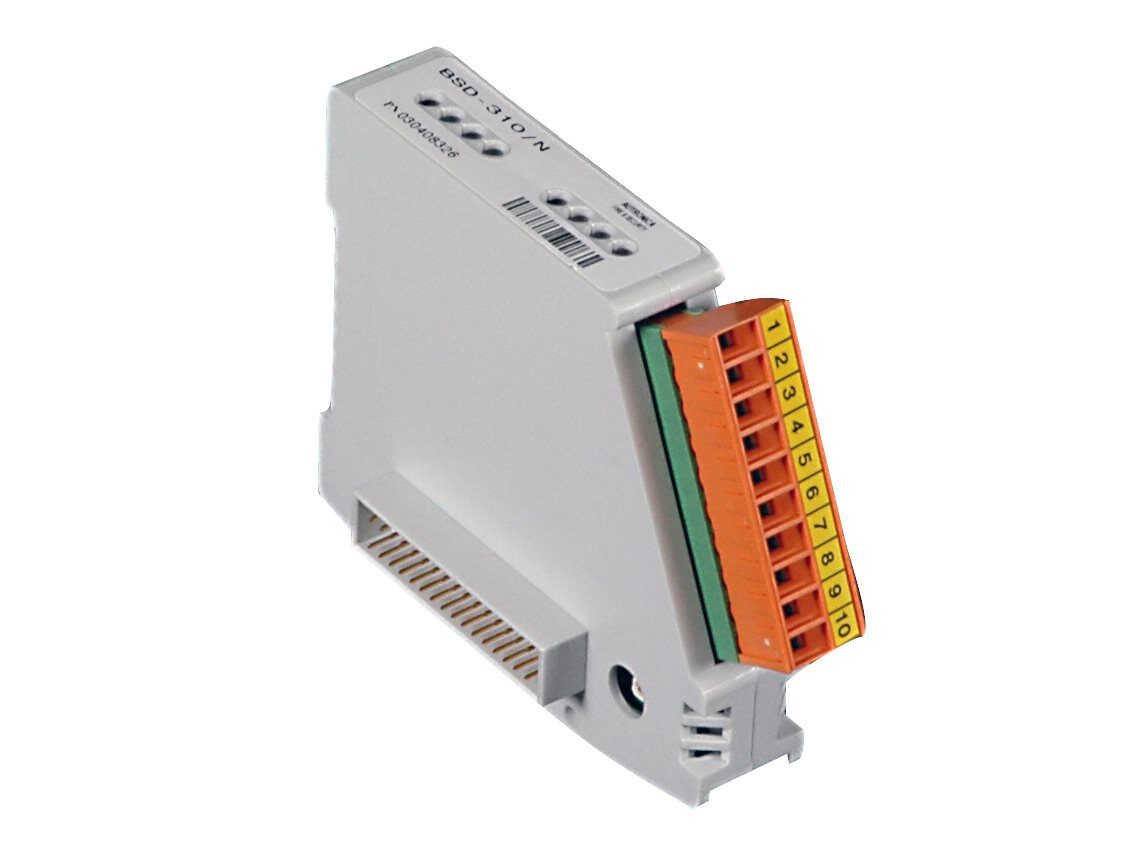

loop driver module bsd 310/n (duplicate)

Loop driver module BSD-311, high power

Loop driver module H.P. (High power) with high current output has the same function as BSD-310, but with higher current draw for supplying of sounders on the loop (loop powered sounders). Maximum per control panel/controller is 6.

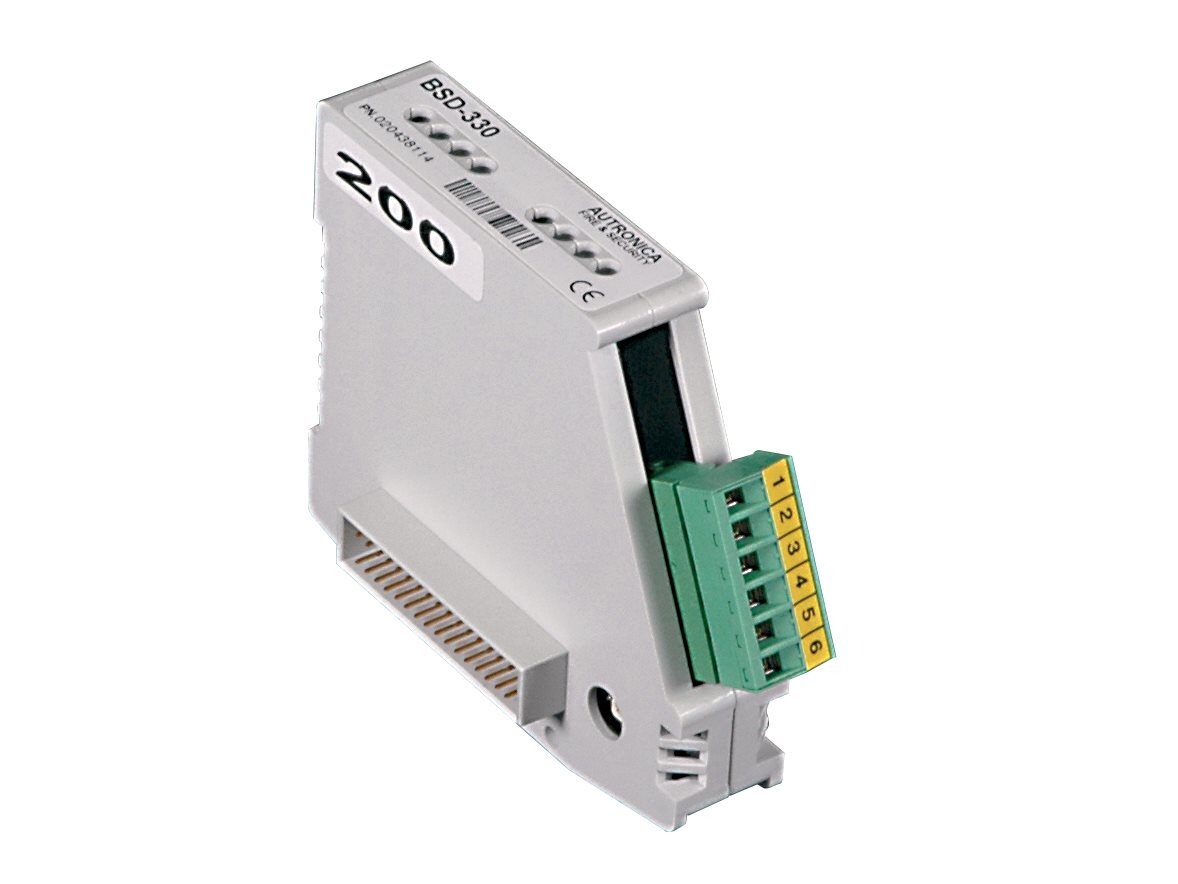

BS-100 loop interface BSD-330

BS-100 loop interface, enabling the AutroSafe fire detection system to run BS-100 loops.

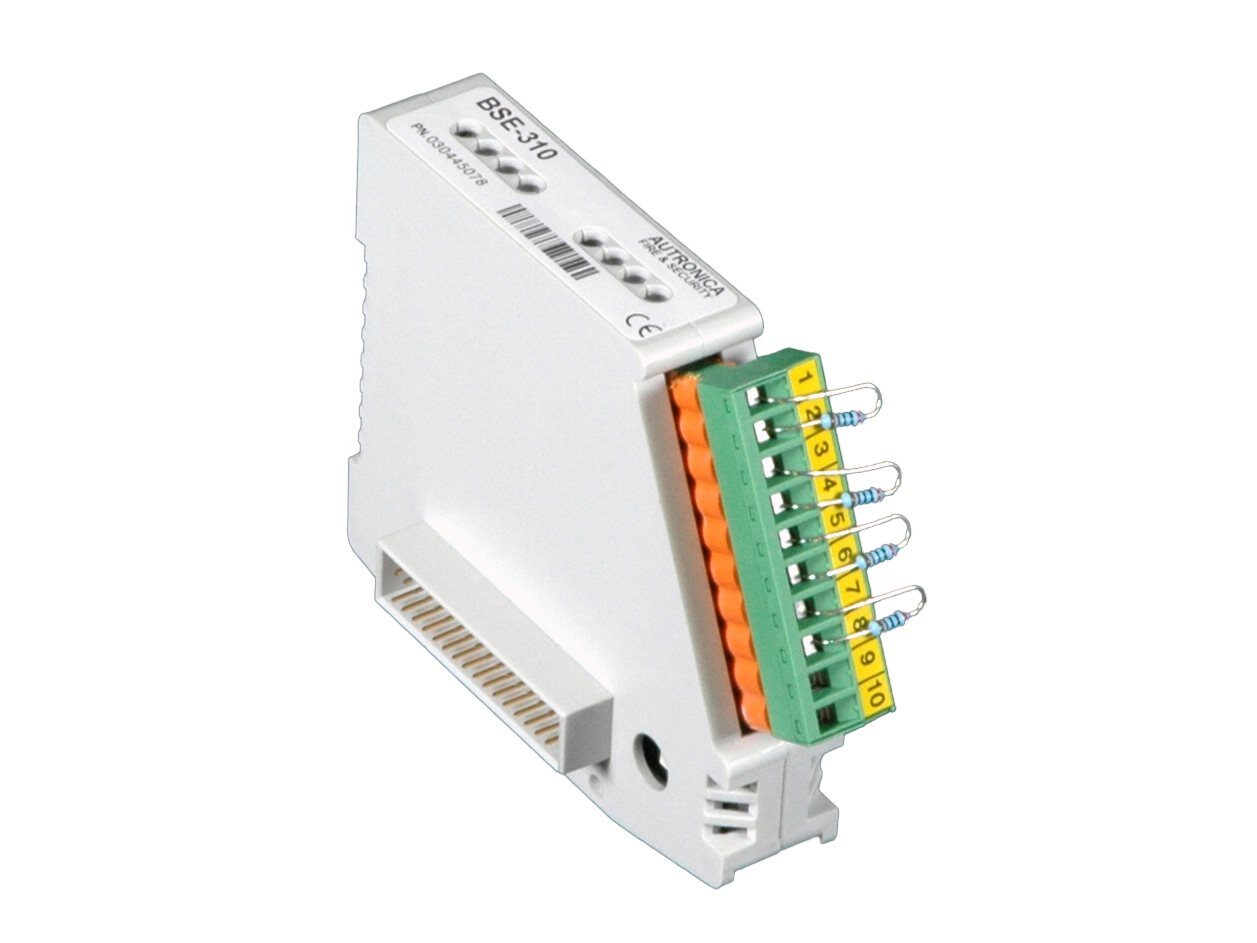

Input module, monitored BSE-310

Input module with 4 monitored inputs for digital input devices and other controlling inputs.

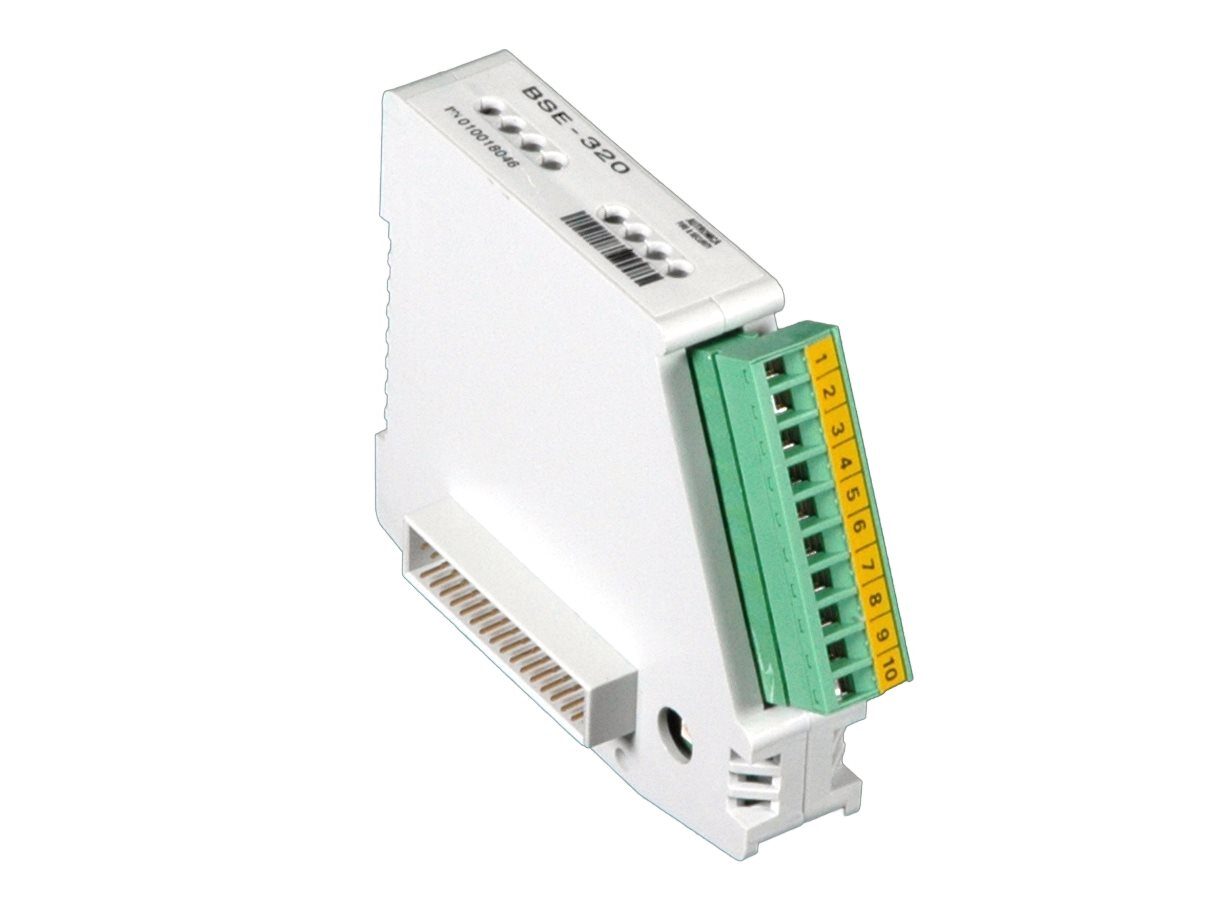

Input module BSE-320

Input module with 8 non-monitored and galvanically isolated inputs for digital input devices and other controlling inputs.

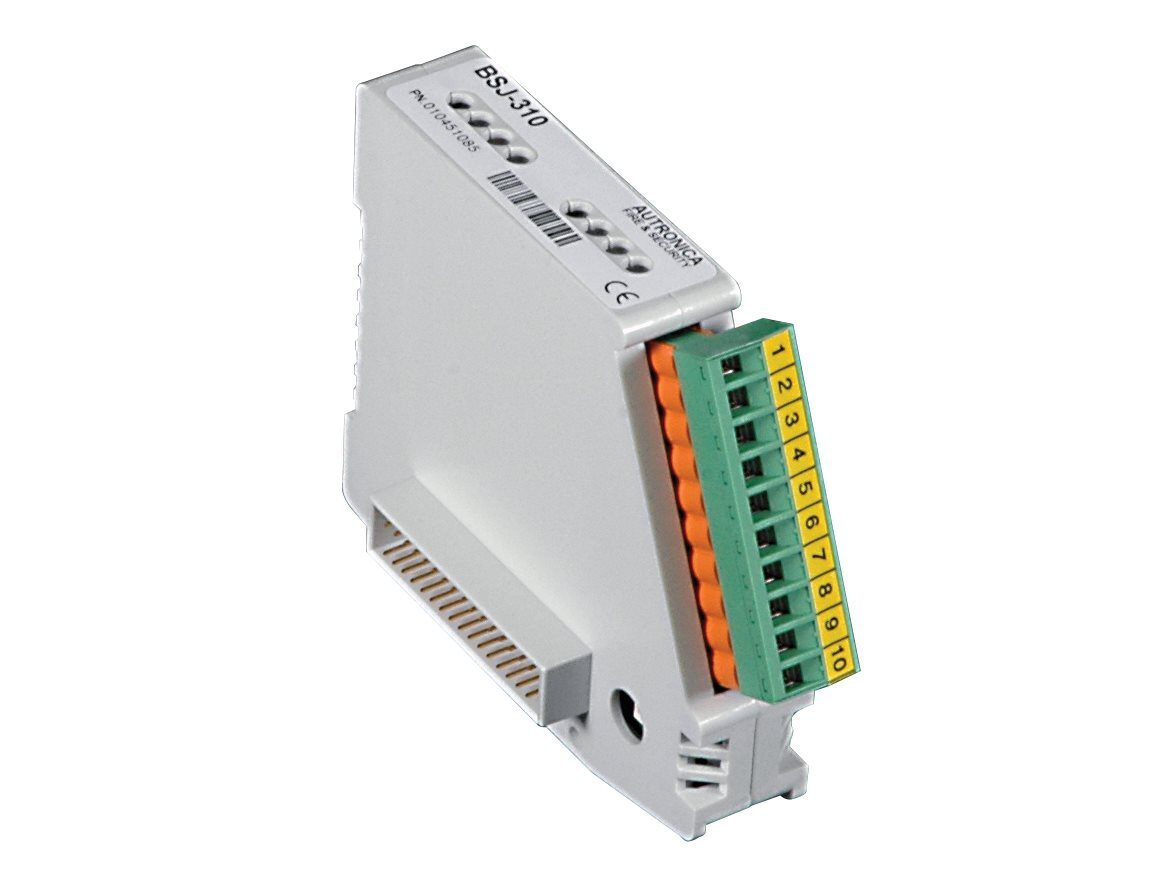

Output module BSJ-310

Output module with 8 open transistor (collector), non-monitored outputs.

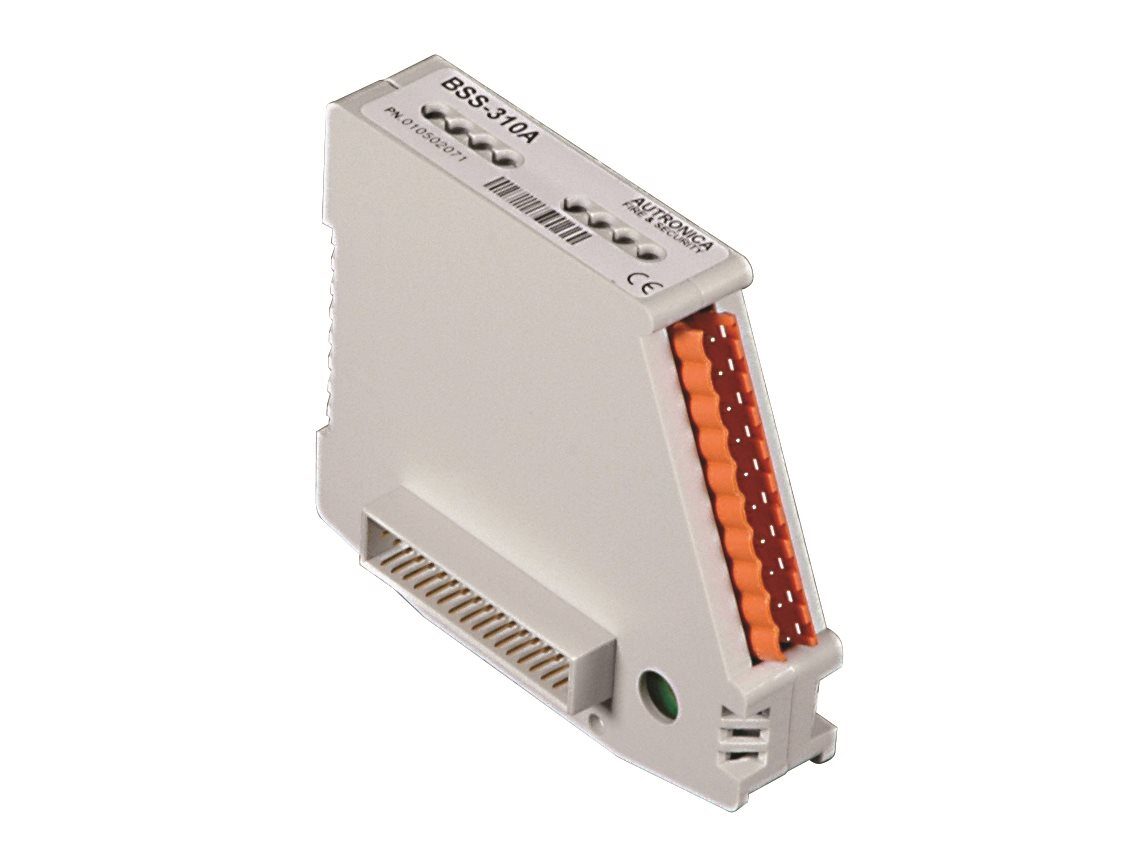

Power supply module BSS-310A

AutroSafe power supply module for converting unregulated battery voltage to 24V DC and 5V DC regulated voltage for all I/O modules.

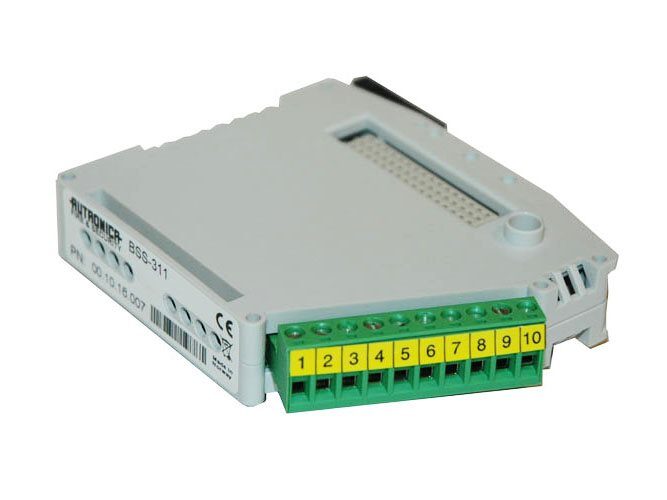

Dual power monitoring module BSS-311

The dual power monitoring module BSS-311 provides redundant power input to the BSS-310A module mounted in the fire alarm control panel (BS-420) or the controller (BC-420). AutroSafe 4.

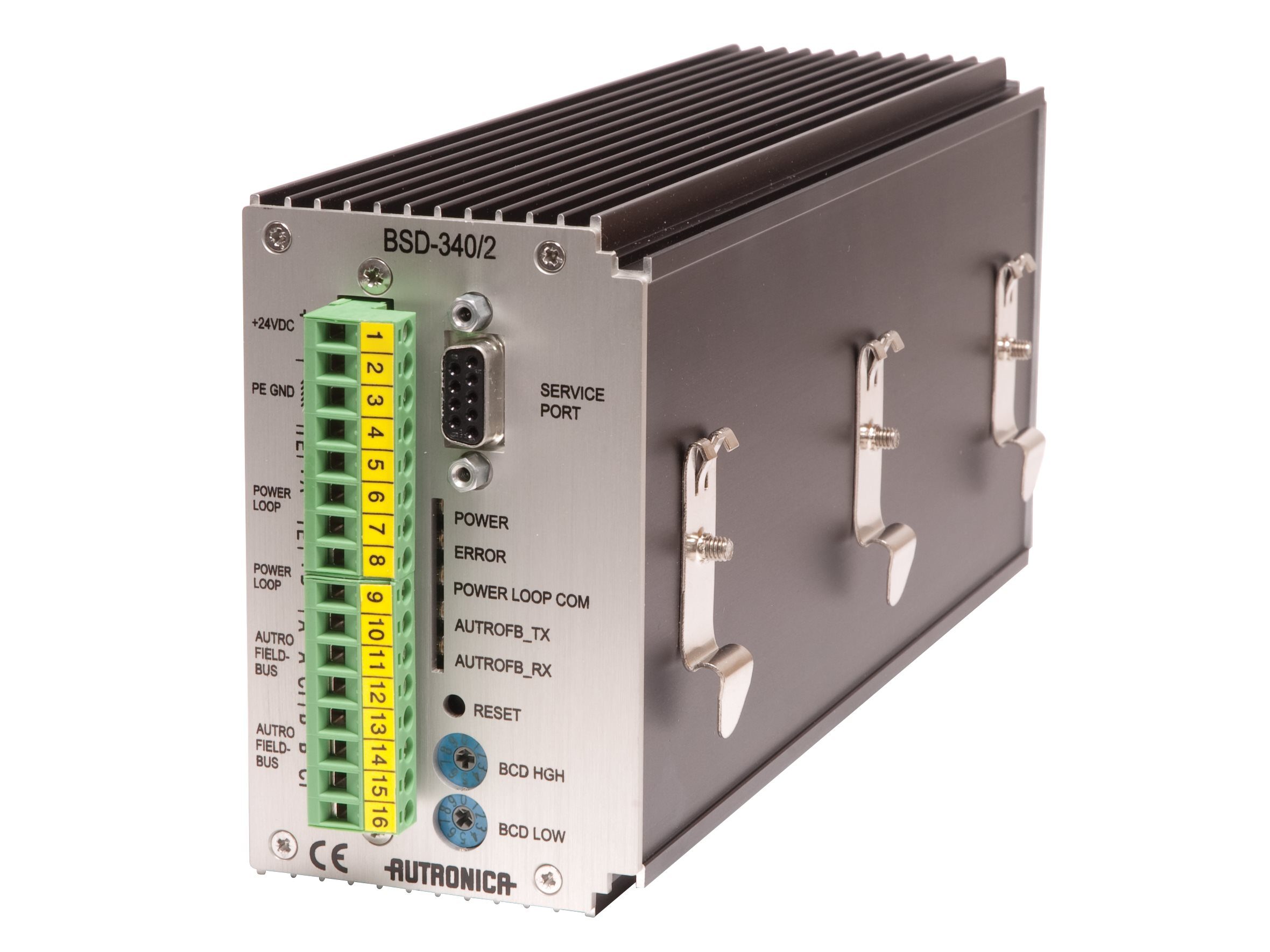

PowerLoop driver BSD-340/2

A protocol converter between AutroFieldBus and PowerLoop. It consists of PowerLoop interface for power and communication, and AutroFieldBus interface towards AutroFieldBus driver (EAU-340). DIN-rail mounted

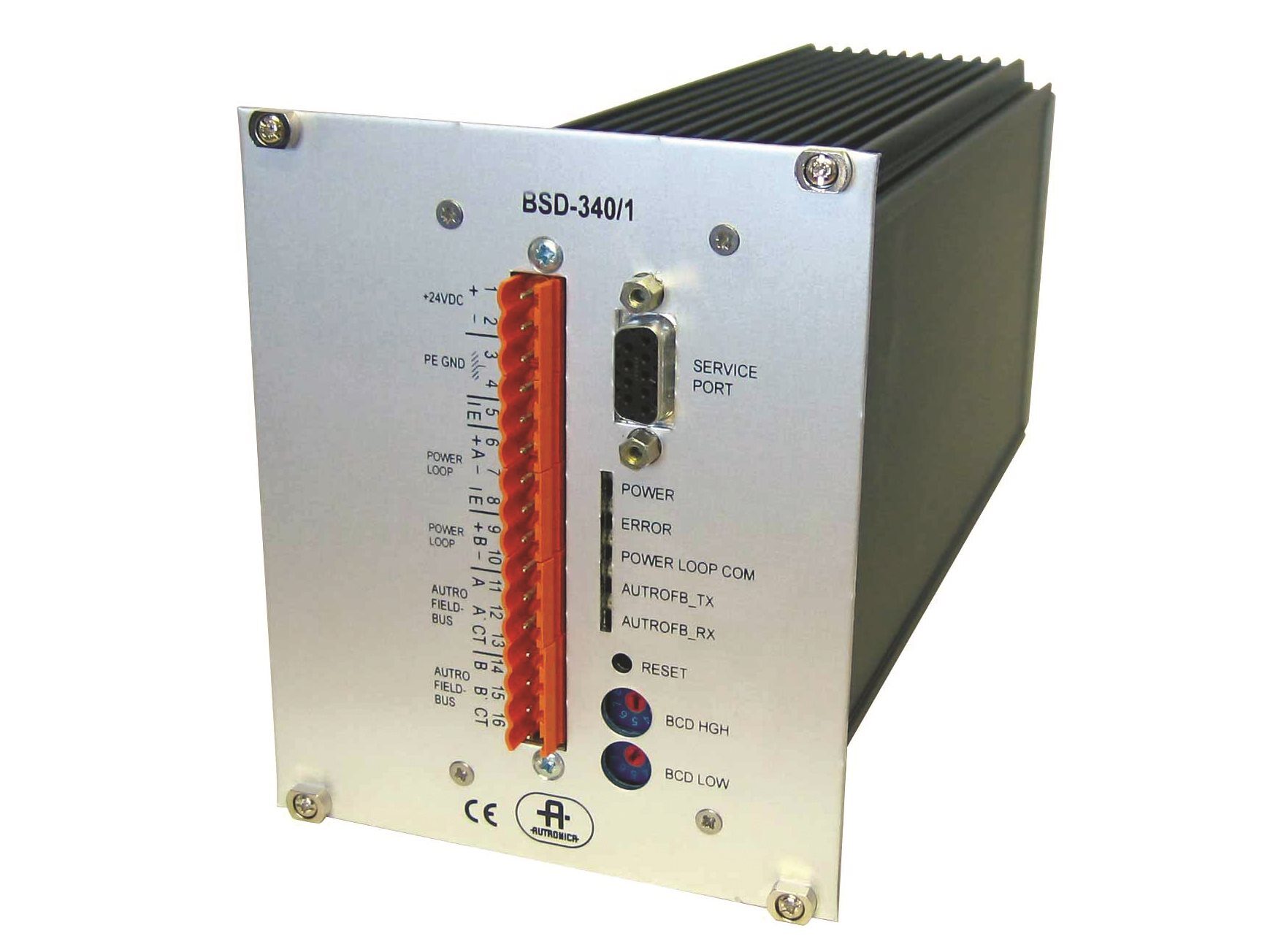

PowerLoop driver BSD-340/1

A protocol converter between AutroFieldBus and PowerLoop. It consists of a PowerLoop interface for power and communication, and an AutroFieldBus interface towards AutroFieldBus driver (EAU-340). Rack mounted

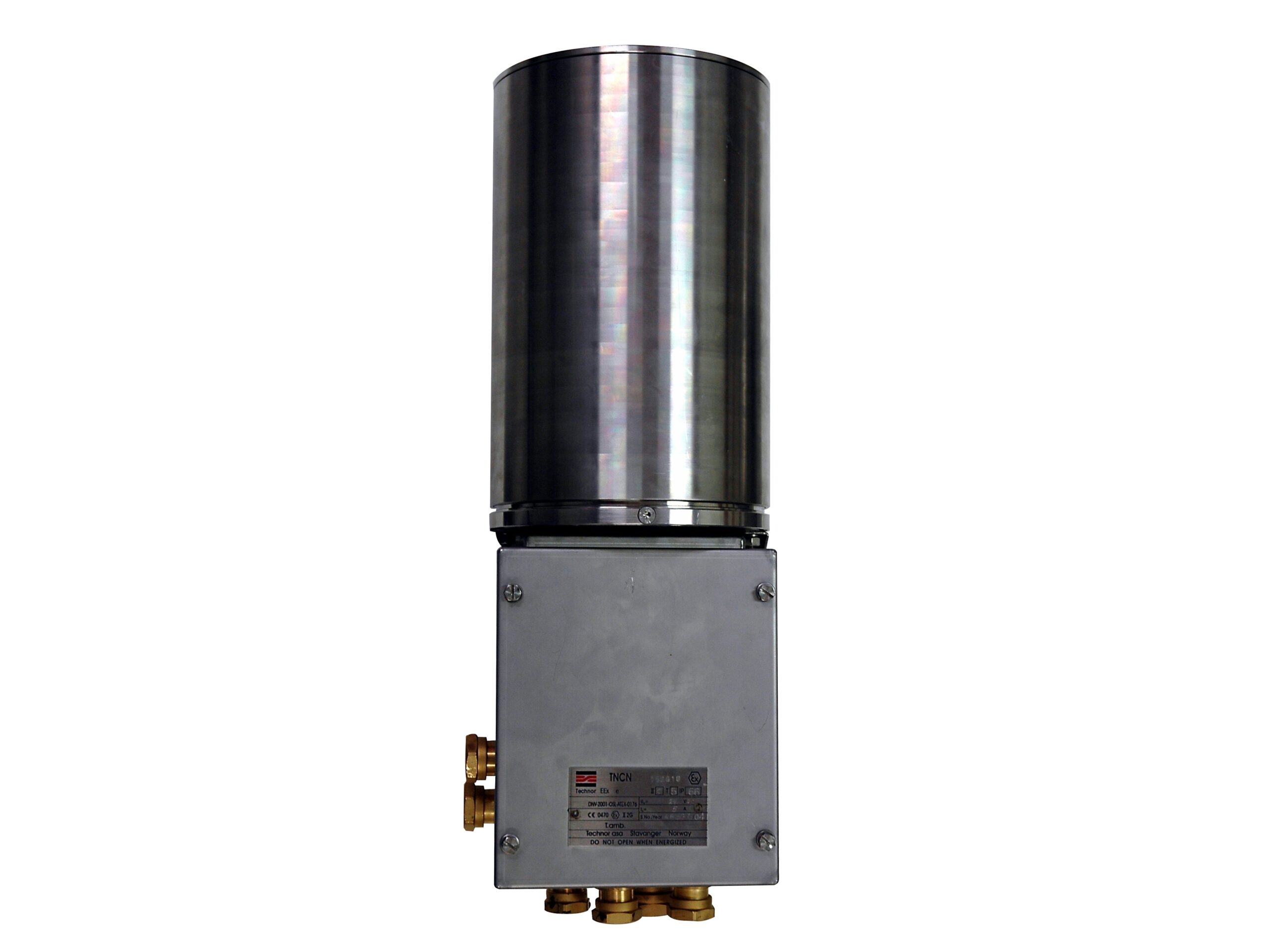

PowerLoop driver BSD-340/EX

A protocol converter between AutroFieldBus and PowerLoop. Consists of PowerLoop interface for power and communication, and AutroFieldBus interface towards AutroFieldBus driver (EAU-340). For hazardous areas, zone 1 and 2.

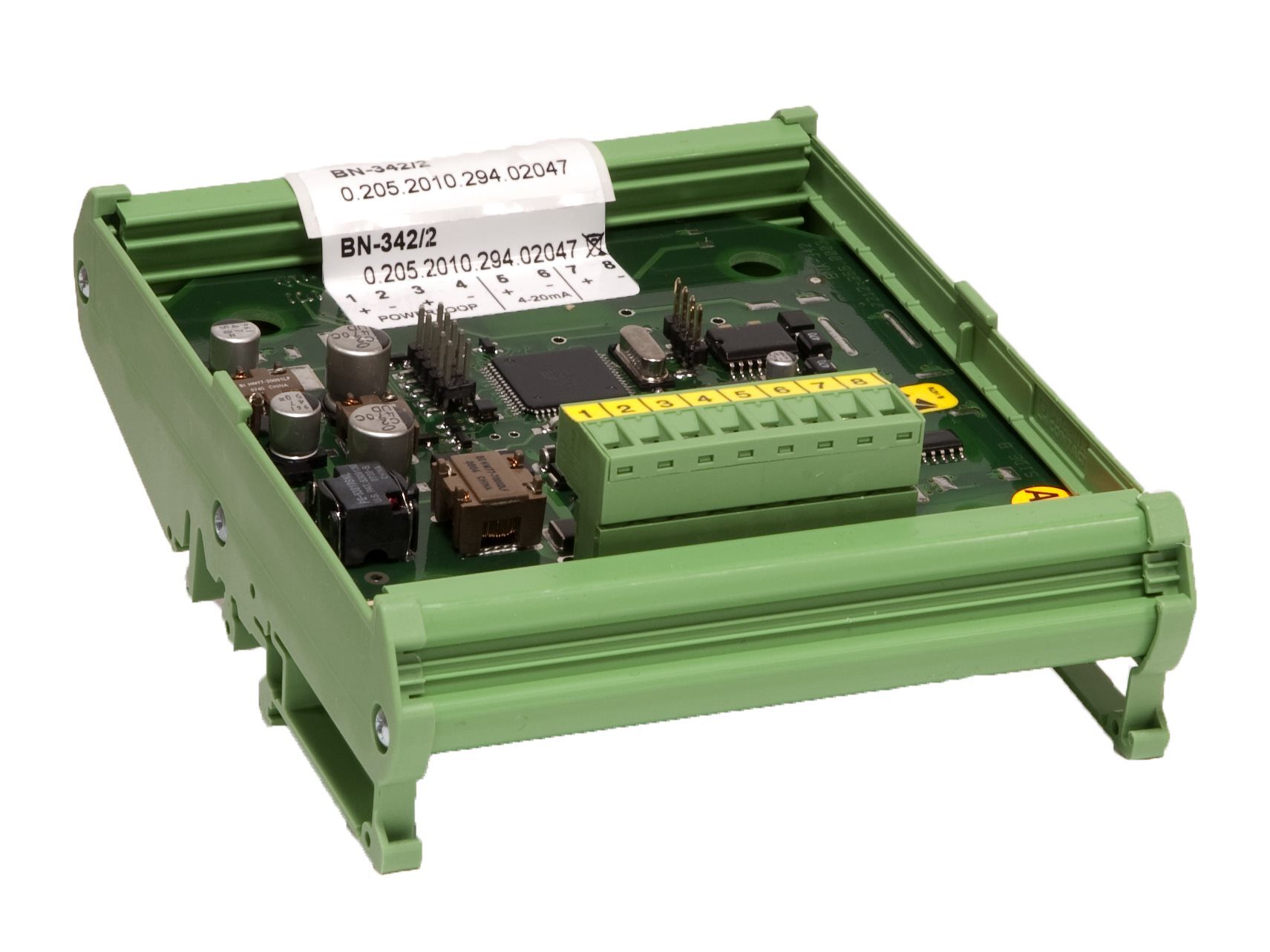

PowerLoop 4-20 mA input unit BN-342, DIN rail mounted

A general-purpose PowerLoop interface designed for third party detectors connected to the AutroSafe integrated fire and gas system and AutroSafe maritime gas detection system.

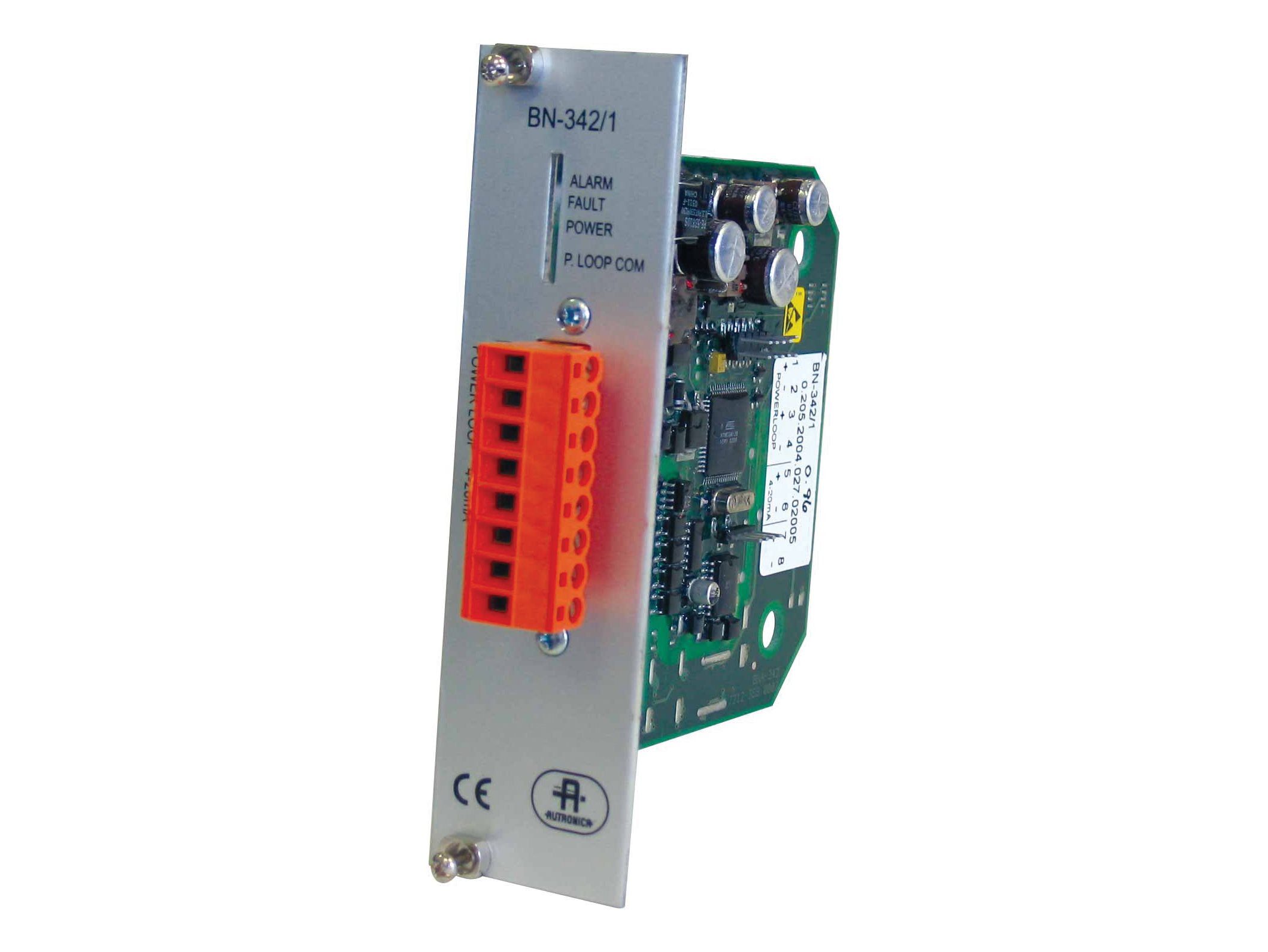

PowerLoop 4-20 mA input unit BN-342, rack mounted

A general-purpose PowerLoop interface designed for third party detectors connected to the AutroSafe integrated fire and gas system and AutroSafe maritime gas detection system.

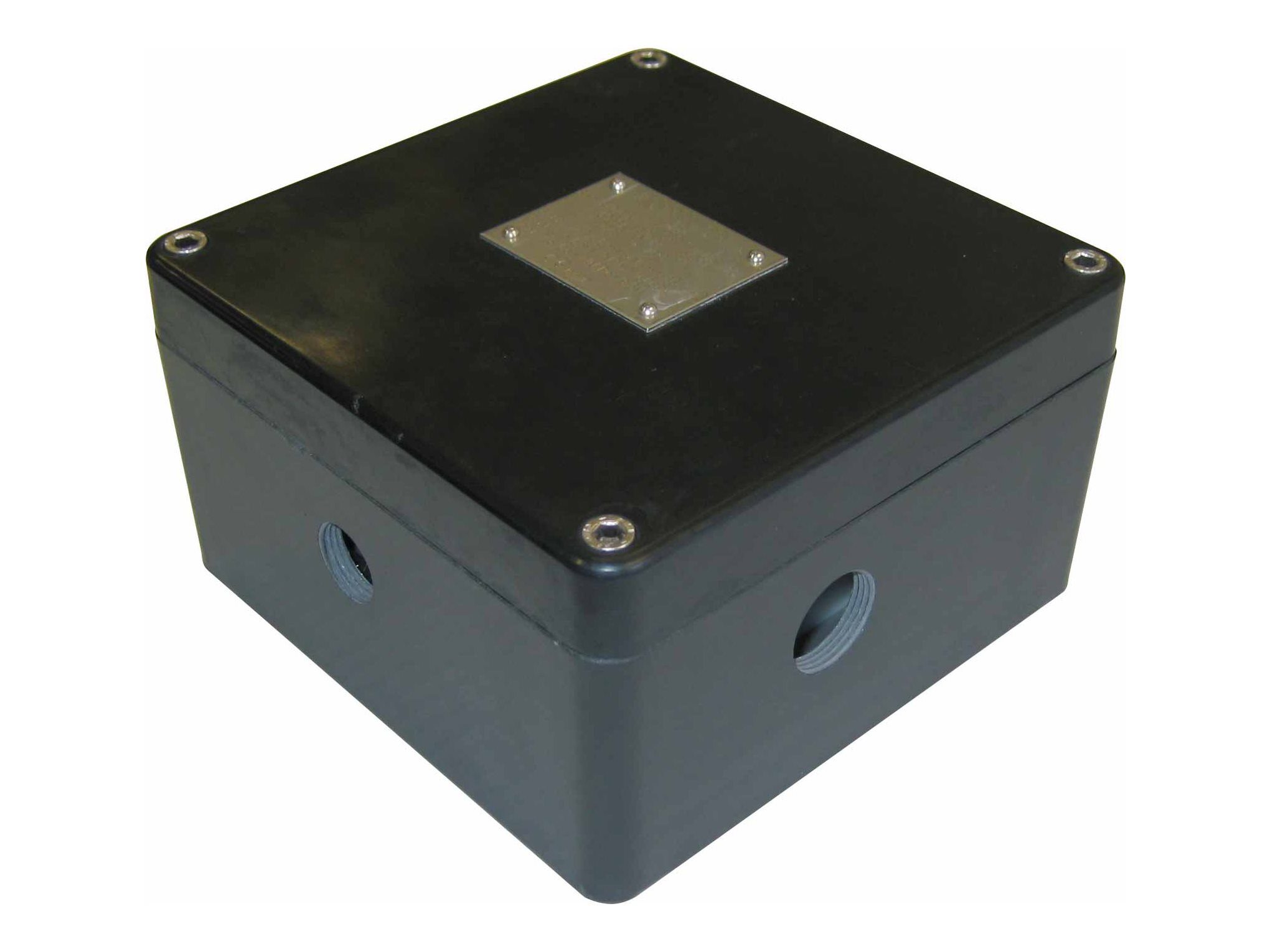

PowerLoop 4-20 mA input unit BN-342/EX

A general-purpose PowerLoop interface designed for third party detectors connected to the AutroSafe integrated fire and gas system and AutroSafe maritime gas detection system.
